Medium voltage products

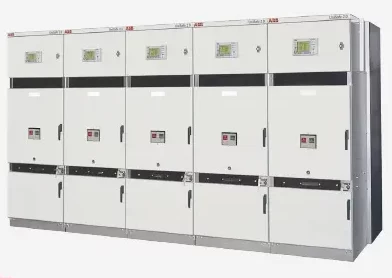

ABB UniSafe 2.0
Air insulated Medium voltage Switchgear for primary distributionUp to 24kV, 4000A, 50 kA
ABB UniSafe 2.0 have been type testedin compliance with internationalstandards and hold a wide rangeof certifications.The switchgear construction ismodular and made up by placingstandardised units side by side ina coordinated way. Safety andreliability are key design criteria,so the units are fully arc-proof.Installation requires very simplecivil works.
Normal service condition:
- Minimum ambient temperature: -5°C
- Maximum ambient temperature: +40°C
- Maximum relative humidity: 95%
- Maximum altitude: 1000 m s.l.m.
- In presence of unpolluted and non-corrosive atmosphere
Degrees of protection:
- External enclosure: IP 4X
- Inside the compartment: IP 2X
Optional for external enclosure:
- IP 41
- IP 42
- IP 43
Standards:
- IEC 62271-1 for general application
- IEC 62271-200 for switchgear
- IEC 62271-100 for circuit breaker
- IEC 62271-102 for earthing switch
- IEC 62271-106 for contactor
- IEC 60259 for protection degree
UniSafe 2.0 switchgear features
• The air insulation of all live parts plays a vital role in ensuring operational safety and durability.
• Meeting the highest industry standards, the system is classified under LSC-2B/PM.
• In addition, the apparatus set includes various components such as vacuum circuit breakers, SF6 circuit breakers, and vacuum contactors.
To enhance user safety, the apparatus can be racked in or out with the door closed. Additionally, the system boasts an internal arc classification IAC AFLR and is fitted with advanced safety interlocks.
Whether wall-mounted or free-standing, this solution offers flexibility. Putting the system into service, performing maintenance, and managing operations are conveniently carried out from the front.
For users seeking customization, high customization versions are available. The construction utilizes pregalvanized sheets without welding points, ensuring strength and reliability.
Moreover, a wide range of functional units accommodates diverse installation needs. Traditional CTs, VTs (both fixed and withdrawable), and sensors are also included. The modular structure is designed for easy assembly, simplifying the installation process.
