Siemens sivacon 8PT

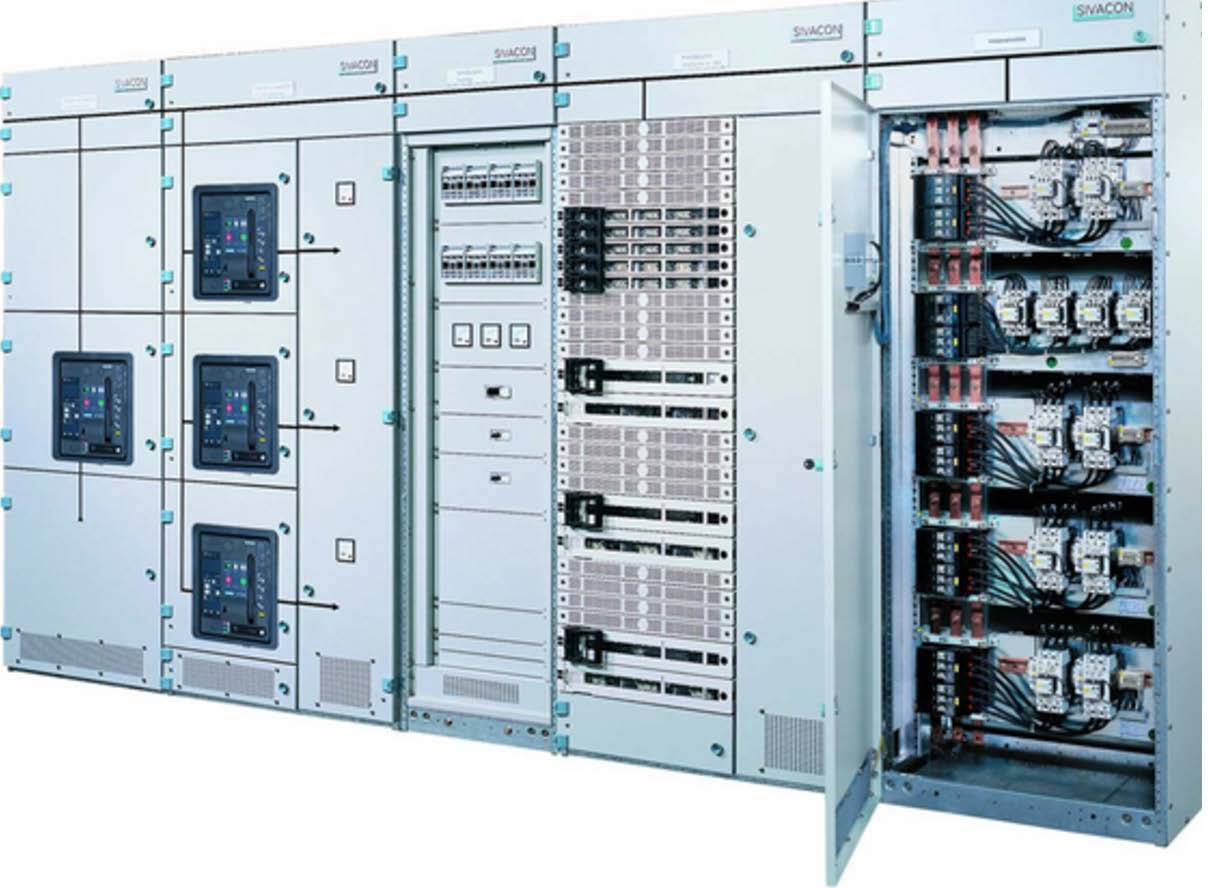

The SIVACON 8PT low-voltage switchboard
The SIVACON 8PT low-voltage switchboard is the solution for buildings and industrial engineering. The wide range of possible module combinations allows the switchboard to be ideally adjusted to meet every deman
SIVACON is a type-tested switchgear and controlgear assembly (TTA) whose physical characteristics were designed in the test laboratory both for normal operating conditions and for fault situations.
Conclusive type tests assure a maximum of reliability and personal safety. SIVACON has passed the following verification tests as detailed in
- IEC 60439-1
- DIN EN 60439-1
Circuit-breaker cubicle
• Up to 3 circuit breakers can be installed per cubicle
• Test and disconnected position with door closed
• Freely selectable direction of incoming supply without
constraints on the technical specifications
• Optimal connection conditions for every rated current range.
SIVACON 8PT is tailored to the needs of the
global market, i.e. it considers the demand for
standard solutions from a single source but at
the same time for local production. It can be
used for all applications up to 7400 A:
• As main switchboard (power control center
or main distribution board)
• As motor control center (MCC)
• As sub-distribution board
With the many combinations that the
SIVACON modular design allows, a wide range
of demands can be met both in fixedmounted,
plug-in and in withdrawable-unit
design.
Various installation components are available for customised
solutions, e.g. for open and closed-loop control tasks.
• 3- and 4-pole vertical distribution busbars
• Rated currents up to 1200 A
• Rated short-time withstand current up to Icw 65 kA
• Cubicle-length doors or compartment doors
• Compartmentalization
• Various installation component8
